BORING SYSTEM 323

SPARE PARTS FOR

BORING SYSTEM 323

Semiautomatic, multispindle 3-head boring machine with n.1 horizontal fixed boring head and n. 2 turnable vertical boring heads

For horizontal and vertical drilling into wood-based panels; for the production of big-size pieces of furniture. The ideal solution for bookcase, bookshelf and wardrobe manufacturers.

- Small footprint: 2 sqm

- The quick set-up devices and the 3 boring heads, working simultaneously, considerably speed up the working process with respect to a single-head boring machine

More than 3.000 machines manufactured, over thirty years' experience .100% made-in-Italy machines abiding by the highest quality standards as a result of the "Lean" manufacturing process, also known as "Toyota System".



TECHNICAL FEATURES MODEL

N.2 vertical, turning,parallel boring heads, with 23 spindles each, sliding on prismatic guides and ball bearings; accurate positioning over digital read-out displays, micrometric adjustment devices and pneumatic locking system.

Boring-depth adjustment on numeric counters

N.1 fixed horizontal boring head with 23 spindles, with patented Spiral System for a quick boring-depth adjustment, and numeric counters for an accurate set-up of the boring height

Distance between first and last spindle on each head : 704 mm and 32 mm interaxis

Electric drives to select each boring head during a working cycle

Quick-change spindles

Ready to be connected to a dust collector

Manufactured according to EC standards



STANDARD EQUIPMENT

N.3- 2 HP motors

N.2 hold-down clamps turning from 0° to 90° with well-dimensioned wooden bar 750x106x30 mm

N.15 quick-change chucks

N.1 - 3000 x 80 mm fence with 4 manual ref. stops with nonius, sliding on guides and ball bearings

Reference stop for the long panels

Ready to be connected to a dust collector

Package: carton box

Manufactured according to EC standards





MORE INFORMATION

HIGH PRODUCTIVITY

It performs all the drilling operations to build up a cabinet in just two working cycles: the two vertical boring heads drill the holes for the side panels while the horizontal boring head makes the holes for the panel joints.

QUICK SET-UP

Quick and accurate positioning of the vertical boring-heads thanks to a pneumatic locking system, digital read-out displays and micrometric adjustment devices. Boring-depth and boring-height adjustment of the horizontal head is also easy and fast thanks to the "Spyral System" and the numeric counters.

EFFECTIVE PANEL HOLD-DOWN AND DRILLING ACCURACY

N.2 quick-adjustable, pneumatic, safety clamps, swivelling from 0° to 90°, ensure the perfect panel hold-down, which results into always accurate drilling operations.

QUICK AND ACCURATE PANEL POSITIONING

N.4 reference stops with magnify glass and nonius sliding on ball bearings along the aluminum fence (3000x80 mm)

COMFORT

Easy positioning of the long panels thanks to the "Cantilever" structure and to the wide and solid panel holders  made of steel. The panel drive is on the front side, easily accessible for the operator.

FAST AND EFFECTIVE

Thanks to the quick-set-up devices and the 3 boring heads working simultaneously, it considerably speeds up the drilling process with respect to a single-head boring machine. Perfectly suited to process big-size panels.

SOLID STRUCTURE

Made of steel, built to last. Eco-friendly, rust-resistant powder coating. Boring heads are made of aluminium, while internal gears are made of rectified steel.

FAST DRILLING OF HINGE HOLES

You can apply the boring aggregates of the available typologies ( BLUM, HETTICH, SALICE, GRASS) to drill the three hinge holes in one working cycle.


DATA SHEET

Boring heads N. 3

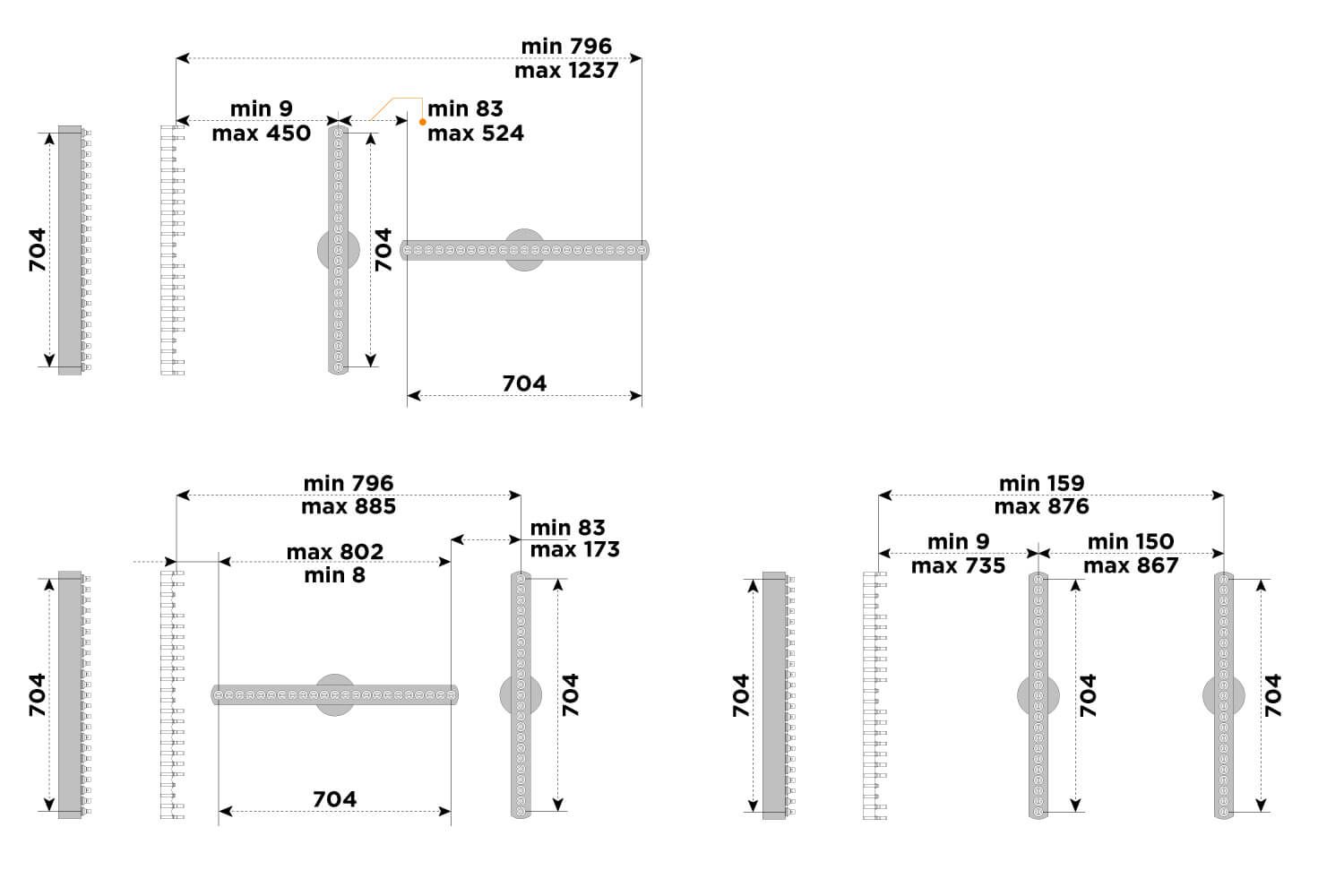

Distance between the heads min. - max. 150 - 867 mm
Spindles each head N. 23
Left and right spindles for each head N. 11 - N. 12
Spindle interaxis 32 mm
Total interaxis 704 mm
Distance between rear head n°1 and rear fence (min. - max.) 9 - 450 mm
Distance between front head n°2 and rear fence (min.- max.) 159 - 876 mm
Max. tool diameter 40 mm
Max. boring depth 50 mm verticale / 65 mm orizzontale
Height of the working table 900 mm
Max. panel thickness 60 mm
Max. panel dimensions 870 x 3000 x 60 mm
N° motors HP 2 / KW 1,5 - RPM 2800 ( x 3 )
Standard pneumatic pressure BAR 6/8
Air consumption per working cycle NL 30
Dust-collection hood diam. 80 mm
Overall dimensions (incl. full extended side roller tables) (incl. long fence mounted) 1790 x 1000 x 1350 mm
Net weight 750 kg
Package dimensions (machine) 1900 x 1150 x 1500
Fence package dimensions (each carton - n.2 cartons on the whole) _______________________________
Total gross weight 850 Kg


ACCESSORIES

Improve the comfort
Independent idle-roller table 500x1500 mm

To make the handling of large-size panels easier for the operator

Independent idle-roller table 500x1500 mm ( idle-roller surface only) 562x1540 mm (incl.frame), adjustable height from 770 to 1.175 mm, max. capacity 45 Kg/m. It can be installed both sides of the machine


CODE: 27304100

Ergonomics
Quick-change bush / chuck

By using these quick-change tool-holders, You can mount Your drill-bits on the boring head in just "one click"


CODE: 36000061

Quick-drill of hinge holes
Drilling aggregate for hinges, type "Salice"

To drill the three hinge holes in one single working cycle

DRILL-BITS NOT INCLUDED


CODE: 00008391

Quick-drill of hinge holes
Drilling aggregate for hinges, type "Blum"

To drill the three hinge holes in one single working cycle

DRILL-BITS NOT INCLUDED


CODE: 00008392

Quick-drill of hinge holes
Drilling aggregate for hinges, type "Hettich"

To drill the three hinge holes in one single working cycle

DRILL-BITS NOT INCLUDED


CODE: 00008393

Recommended tools
Tool set made up of 3 drill-bits for hinges

Recommended drill-bit set for drilling aggregate for hinges, made up of n. 2 left-handed drill-bits 8mm diameter and n.1 right-handed drill-bit 35 mm diameter

Tool set made up of 3 drill-bits for hinges


CODE: 26845821

Ergonomics
Increase the accuracy of the working process
Additional panel support

It provides an additional support for the long panels, increasing their stability during the working process


CODE: 26800215

Increase the accuracy of the working process
Supports for long panels on the aluminum fence

It provides an additional support for the long panels, increasing their stability during the working process

N.2 supports for long panels on the aluminum fence


CODE: 26850623

Quicker set-up
Pneumatic ref. stops

For an even quicker and more accurate set-up

N.2 pneumatic ref. stops with digital read-out display, sliding on the long fence ( option to be specified at the order)


CODE: 26850624

Quicker set-up
Hold-down clamps on the aluminum fence

To increase the hold-down pressure on the working panel and consequently its stability during the drilling process

N.2 hold-down clamps on the aluminum fence ( option to be specified at the order)


CODE: 26850622

Increase the accuracy of the working process
n.2 dynamic brakes

For a constant and even movement of the two vertical boring heads during the drilling process ( option to be specified at the order)


CODE: 26800403

Special voltages
Single-phase Motor

To have the machine working in small handcraft shops having an electric system running on 220 Vlts ( option to be specified at the order)


CODE:

Special voltages
"CSA" standards

Electrical standards abiding by the Canadian wiring regulations ( option to be specified at the order)


CODE:

Increase the accuracy of the working process
Reference stop for long panels

It provides an additional reference point for the positioning of long panels, increasing their stability and consequently the accuracy of the working process.


CODE: 26800203


FAQs

Attached is the complete list of recommended spare parts for the above stated boring machines ...


For pricing information, please contact our spare parts office (service@maggi-technology.com )."

spare parts

BS 323 and BS 323 DIGIT are equipped with 3 motors each, one for each drilling head. Each head can be operated independently from the control panel.

motors, equipment, technical details

See the enclosed drawings ...

dimensions, technical details

See enclosures extracts from the user manual...

adjustment, equipment, Documents, technical details

The HINGE AGGREGATE accessory (see available types in the attachment) is used to create the 3 holes necessary for the application of a hinge in a single working cycle.


MOUNTING The mounting is easy and fast, you just need to click the aggregate onto the quick-change bushings (accessory) present on the vertical heads of the BS 323 and/or BS 323 DIGIT, as shown in photo A. The hinge aggregates can be mounted in any position on the head, taking into account the rotation direction of the spindles on which the head is applied (red spindle - left rotation / black spindle - right rotation). If, for example, the central attachment of the head (which is the one that transmits the rotation to the bits) will be positioned on a BLACK spindle, then the central bit of the head (35 mm diameter bit) will rotate to the right, and consequently the two smaller side bits will rotate to the left, and vice versa in the opposite case (see attached image B).

ADJUSTMENTS When making the holes for the hinge with the aggregate, the drilling depth setting is similar to what would be done by applying a bit with a length of 85 mm (see attached image C), the vertical head must be positioned perpendicular to the operator and the panel must be transverse to the machine (see attached image D).

assembling, positioning, adjustment, use and maintenance, accessories, options

See attached drawings ..

dimensions, technical details

The attached image shows the necessary workspace..

use and maintenance, dimensions, usage tips, consultancy

Please refer to the attached table for the available types of hinge aggregates ...


accessories, options

Please refer to the attached drawings for the requested information...

accessories, options, dimensions

 The hinge drilling aggregates attach to the spindles on the head with a simple click, just like regular drill bits.

assembling, accessories, options

Please refer to the attached image...

accessories, options, dimensions

Please refer to the attached documentation...

Documents, usage tips

 The quick-change chucks (code 36000061) are mechanical tool holders that allow for the rapid mounting and removal of drill bits on the head of the boring machine, without the need for additional tools, just a click!

accessories, options

Yes, these multi-head boring machines are also available in a single-phase motor format.

motors, voltages, equipment

Yes,  Maggi semi-automatic boring machines, both single-head and multi-head, are also available in the single-phase motor format.

motors, voltages

The reference pin is not just a generic alternative to the bar; in the case of processing (inline vertical drilling) panels longer than 2 meters, it becomes ESSENTIAL to complete the work!

Look at the attached drawings; as you can see, the third and final part of the operation cannot be completed with just the bar because the profile is not long enough to provide the necessary references. Furthermore, the reference pin is always to be preferred over the bar and should be recommended to the customer when precision is an essential requirement!

use and maintenance, comparisons, usage tips

The hinge head units are offered by Maggi as accessories for their single-head and 3-head drills to allow the creation of the 3 holes for hinge application in a single drilling cycle. There are various types of head unit (see attached image), for each of which we recommend using specific 38.5 mm length drill bits (see attached image) - a 35 mm diameter center bit and 8 or 10 mm diameter side bits.

The hinge head unit can be installed on any spindle of the drill head, whether it rotates clockwise or counterclockwise, so the rotation direction of the bits is not a limiting factor. For ease of use, Maggi offers the 35 mm diameter center bit with a CLOCKWISE rotation and the side bits with a COUNTERCLOCKWISE rotation. The 3 bits can be purchased separately or as a kit.

accessories, options, usage tips, consultancy

For the lubrication of the heads of the multi-spindle boring machines , we recommend using EP 2 type grease. We advise checking the optimal lubrication level every 500 hours of operation.

use and maintenance, usage tips

Attached are instructions and images to correctly perform the lubrication of the drilling head of the multi-spindle boring machines ...

use and maintenance, consultancy

The hinge aggregates that we offer as accessories, in order to make the 3 holes necessary for the application of classic door hinges in a single work cycle, can be applied to the drilling heads of the following Maggi drilling machines:


- BORING SYSTEM 21 PRESTIGE

- BORING SYSTEM 21 TECHNOLOGY

- BORING SYSTEM 23

- BORING SYSTEM 29

- BORING SYSTEM 35

- BORING SYSTEM 323

- BORING SYSTEM 323 DIGIT


HINGE AGGREGATE CANNOT BE APPLIED ON THE BORING SYSTEM 46 DRILLING MACHINE

comparisons, accessories, options

The drilling aggregates for hinges and for Cabineo can be applied to all traditional Maggi drilling machines, EXCEPT THE BORING SYSTEM 46

comparisons, accessories, options

ATEX certification is a European directive that applies to equipment that can be used in potentially explosive environments.

Maggi products, particularly the motors used, are not ATEX certified.

For more information, you can contact our customer service office at service@maggi-technology.com

motors, certifications

You can identify each spare part within the spare parts area on the website at the following link: https://www.maggi-technology.com/it/


Identifying a spare part is easy; the website has a "spare parts identification" function that can be accessed from various points on the site: at the top of each page on the bar, from the HOME page, and through the MENU in the section dedicated to "SPARE PARTS" (as shown in the attached image), as well as in the "SUPPORT" - "after-sales support" section at the bottom of the contact area.


Once you are in the "spare parts identification" function, simply enter the machine code in the search box, and the corresponding exploded views with the codes for all the spare parts will appear. To find out the price of each spare part, you can contact our service directly via email at service@maggi-technology.com or by calling +39 0571 635 433, or you can ask the nearest MAGGI dealer; you can find them on the dealer map on the website at the following link: https://www.maggi-technology.com/it/contatti/mappa-rivenditori.

spare parts

To print or download the text and image contents of the product sheet, simply click on the .pdf link located below the main image of the product of interest (as shown in the attached image); then you can decide, within your printing program, whether to proceed with printing the document directly (the print quality will depend on your settings) or to create the PDF file (the .pdf file is quite large due to the presence of many images; for sending the document via email, it is recommended to save the document using the "save PDF with reduced size" option).

Documents

Maggi guarantees the availability of spare parts for up to 10 years from the product's manufacturing date.

For spare parts older than 10 years, availability is not guaranteed; you can send a request to our after-sales service (service@maggi-technology.com ) specifying the machine code in question, the year of manufacture, and including a photo of the product and the component for which you are requesting the spare part.

spare parts

The tolerance for the indicated voltages is ±10%.

motors, voltages

To allow the Maggi consultants to evaluate if a certain processing is feasible with one of their machines, I need to provide the following information and data:

  • Dimensions of the workpiece (width, length, thickness, weight)
  • Material (MDF panel, particleboard, plywood... solid wood... etc.)
  • Type of processing to be performed (please send drawing or PDF file)
  • Required productivity (number of pieces per day/week)
  • Type of finished product and possibly a photo of it


compatibility, usage tips, consultancy

At the time of order, it is possible to request a motor with a different voltage from the standard one (400V - 50 Hz - 3PH), or in single-phase version (only for products that allow it), but it is not possible to have a more powerful motor."
